Product Overview
Item Condition: Used

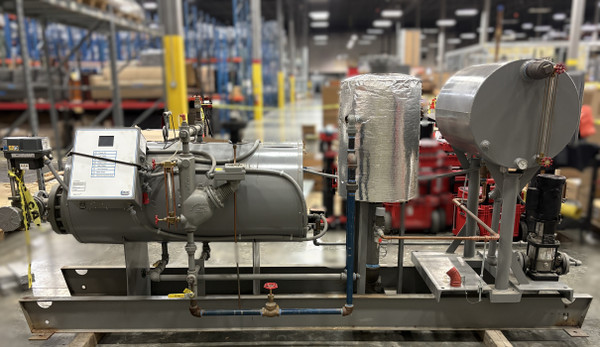

MFR Part #: CEMLINE H60USG648-4P
Unit of Measure: Each
Details/Specifications:
Part of Cemline's Unfired Steam Generator (USG) series, designed to produce clean steam using steam or high-temperature hot water as the energy source. This generator is in working order and has always been stored indoors. It was only used for 1 year and was well maintained. The generator and all components subject to the steam side are carbon steel furnished.
Built: 2020
Last Used: 2021
Gallon Capacity: 60
Mounted on I-beam support skid, which is welded to the shell
Insulation: 3" of fiberglass insulation
Jacket: 20-gauge thick enameled steel
Components Include:
“U” bend coil with 18 BWG 90:10 copper nickel tubes, steel tube sheet, 300# fabricated steel coil head
2-way Electric operated control valve to modulate the incoming HTHW
Control valve pilot to monitor output steam pressure and modulate the HTHW to maintain constant output pressure
ASME code Section 1 pressure relief valve to relieve the total BTU
Vessel steam pressure gauge
Thermometer to monitor the incoming HTHW temperature
Level controller with gauge glass – carbon steel
Manual blow off valve
Low water and high pressure cut off
Steam-trol™ Solid State Control module that includes the following functions:
PID control signal, On-off switch, pressure readout, high pressure set point, low water cut off, alarm horn
with alarm silence button, low pressure alarm, high water alarm, feed water indicator.
Steam-trol™ will have an LCD touch screen display with remote pressure readout, remote pressure setting, remote on/off control, Modbus interface, and contacts for Building Automation System.
Brass feedwater solenoid valve and check valve
Electric high-water cut-off
Centrifugal boiler blow-off/condensate cooler
Feedwater condensate pump with receiver
Weight: Approximately 1670 lbs.
Contact us at 845-524-3586 for more details.
